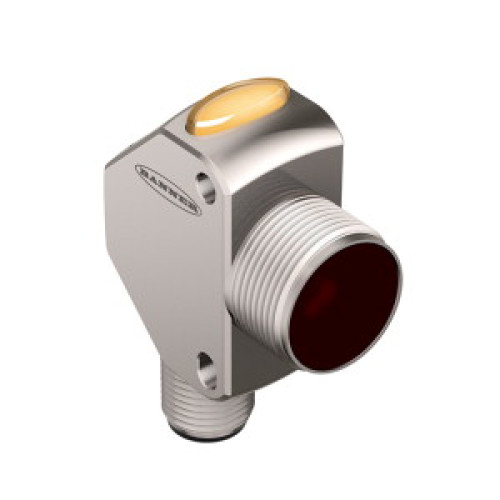

Q3XT Series: Laser Diffuse with BGS, Range: 150, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: Q3XTBLD150-Q8     Manufacturer: Turck Banner
Q3XT Series: Laser Diffuse with BGS, Range: 150, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

£293.08
  • Photoelectric Sensor with Laser Technology
  • Operating Voltage: 10-30 VDC
  • Max. Range: 150 mm
  • 3-Digit 7-Segment LED Display
  • 2 Buttons for Control
  • Output Indicator: Yellow
  • IP67/69K Rated for Dust and Water Resistance
  • Fixed Background Suppression at 190 mm
  • Laser Class 2, Red, 655 nm
  • Operating Voltage: 10-30 VDC

Read more

  • 1 × PNP, 1 × NPN Switching Output
  • Rectangular Model with Offset M18 Thread
  • Die-Cast Zinc Housing


Product

Manufacturer Material ID -
Q3XTBLD150-Q8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

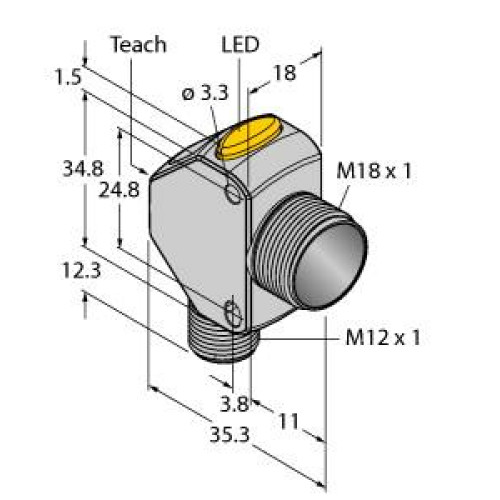

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
48.6 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
35.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP/NPN
Width sensor -
18 Millimetre
