3091629

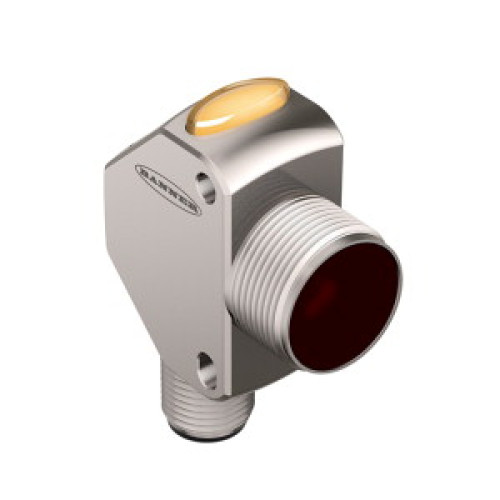

Q3XT Series: Laser Diffuse with BGS, Range: 50, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: Q3XTBLD50-Q8     Manufacturer: Turck Banner
Q3XT Series: Laser Diffuse with BGS, Range: 50, Input: 10-30 V dc, Outputs: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

POA
  • Photoelectric Sensor with Laser technology
  • Operating voltage: 10-30 VDC
  • Max. range: 50 mm
  • 3-digit 7-segment LED display
  • 2 buttons for control
  • Output indicator: yellow
  • IP67/69K rated for dust and water resistance
  • Fixed background suppression at 60 mm
  • Laser class 2, red, 655 nm wavelength
  • 1 × PNP, 1 × NPN switching output

Read more

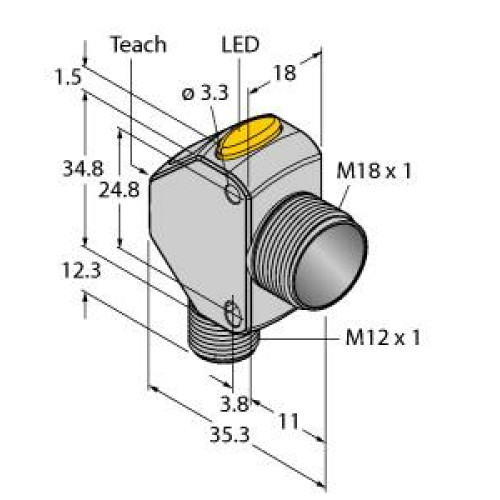

  • Rectangular model with offset M18 thread
  • Die-cast zinc housing


Product

Manufacturer Material ID -
Q3XTBLD50-Q8
Net Weight -
0.11kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39121527

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
48.6 Millimetre
Housing material -
Other
Laser protection class -
Class 2
Length of sensor -
35.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP/NPN
Width sensor -
18 Millimetre
