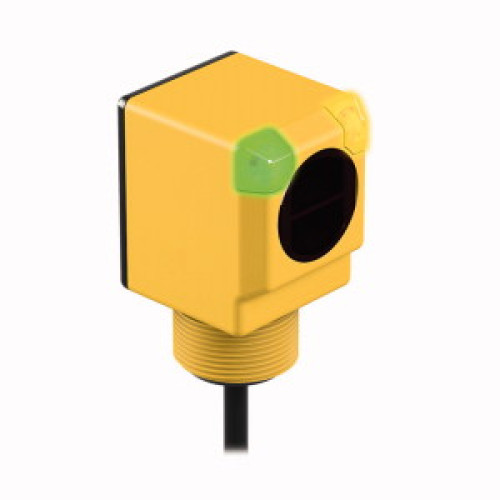

Photoelectric Sensor, Opposed Mode Sensor (Emitter)

Manufacturer's No: Q403E W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Opposed Mode Sensor (Emitter)

Availability On Request

POA
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 20-250 VAC
  • Max. Range: 60000 mm
  • Cable Length: 9 m
  • Cable: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C


Product

Manufacturer Material ID -
Q403E W/30
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
69.8 Millimetre
Housing material -
Plastic
Length of sensor -
46 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Setting procedure -
Other
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
950 Nanometre
Width sensor -
40.1 Millimetre
Turck Banner

Availability On Request

POA
