3032360

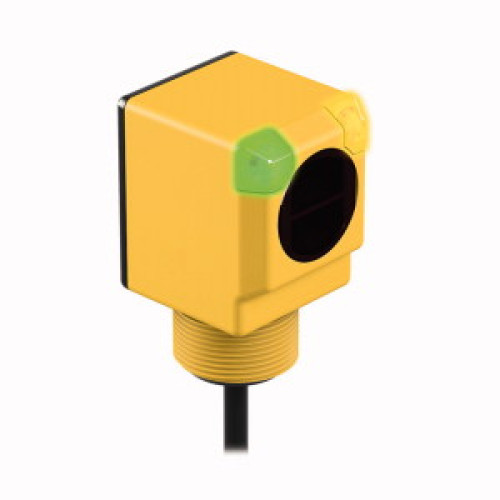

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Manufacturer's No: Q40SN6LP     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Availability On Request

£151.21
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 6000 mm
  • Cable length: 2 m
  • Protection class: IP67
  • Ambient temperature range: -40 to +70 °C
  • NPN switching output with changeover functionality


Product

Manufacturer Material ID -
Q40SN6LP
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
69.8 Millimetre
Housing material -
Plastic
Length of sensor -
46 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
6000 Millimetre
Rated switching distance -
6000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
40.1 Millimetre
Turck Banner

Availability On Request

£151.21
