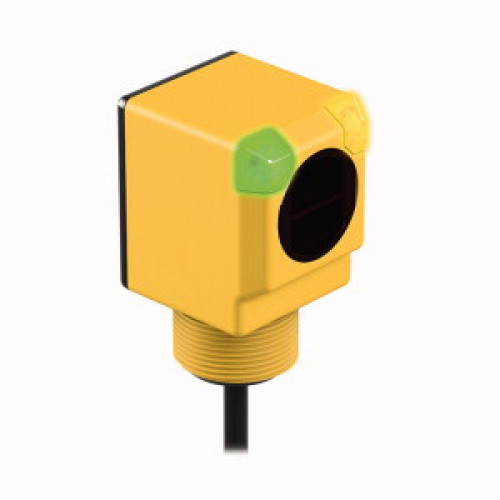

EZ-BEAM Q40 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Complementary NPN, 2 m (6.5 ft) Cable

Manufacturer's No: Q40SN6R     Manufacturer: Turck Banner
EZ-BEAM Q40 Series: Receiver, Range: 60 m, Input: 10-30 V dc, Output: Complementary NPN, 2 m (6.5 ft) Cable

Availability On Request

£104.35
  • Photoelectric Sensor (Receiver)
  • Opposed Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 60000 mm
  • Cable Length: 2 m
  • Protection Class: IP67
  • Ambient Temperature: -40 to +70 °C
  • Selectable light/dark operation
  • Light operation with alarm function
  • NPN switching output, changeover


Product

Manufacturer Material ID -
Q40SN6R
Net Weight -
0.24kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
40 Millimetre
Housing material -
Plastic
Length of sensor -
46 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
3 Millisecond
Setting procedure -
Other
Switching frequency -
160 Hertz
Type of electric connection -
Cable
Type of switch function -
Programmable/configurable
Type of switching output -
NPN
Width sensor -
40.1 Millimetre
Turck Banner

Availability On Request

£104.35
