3036563

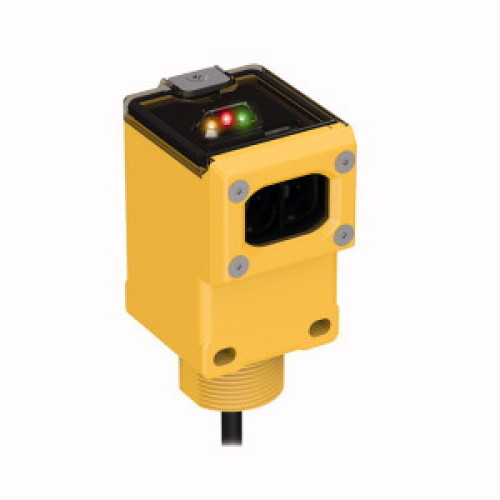

Q45 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Manufacturer's No: Q456E     Manufacturer: Turck Banner
Q45 Series: Emitter, Range: 60 m, Input: 10-30 V dc, Output: Not Applicable, 2 m (6.5 ft) Cable

Availability On Request

£99.81
  • Type: Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 60000 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67


Product

Manufacturer Material ID -
Q456E
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

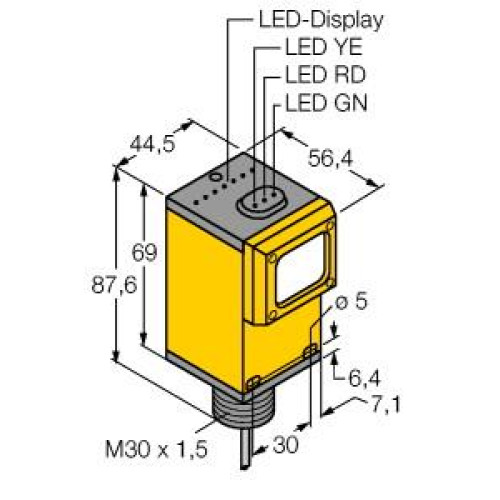

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
880 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£99.81
