3040818

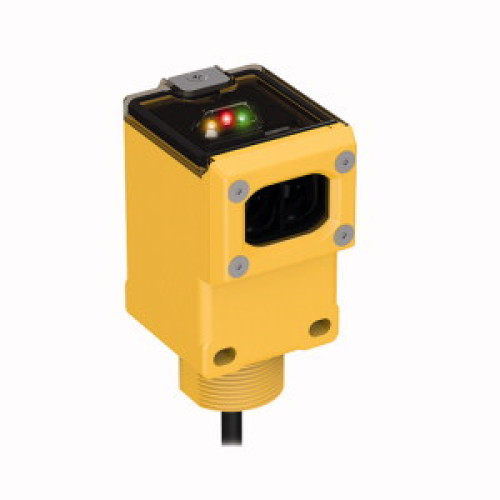

Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: Q45AD9DL W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

£254.33
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 5-15 VDC
  • Max. Range: 1000 mm
  • Cable Length: 9 m
  • Cable Type: PVC, 2 m
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • NAMUR Output: Dark <= 1.2 mA, Light >= 2.1 mA
  • Conforms to EN 60947-5-6 (NAMUR)


Product

Manufacturer Material ID -
Q45AD9DL W/30
Net Weight -
0.71kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

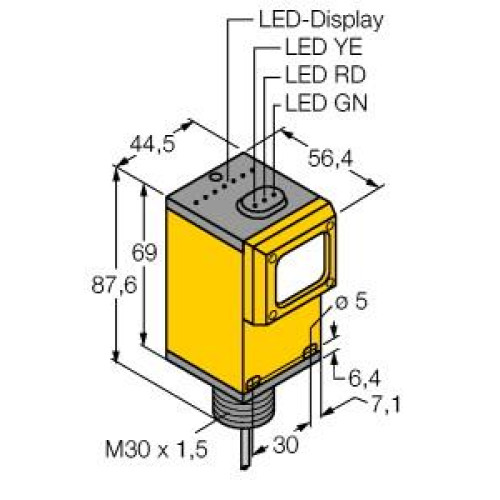

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1000 Millimetre
Reaction time -
5 Millisecond
Sensing mode -
Light switching
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Other
Type of switching output -
NAMUR
Wavelength of the sensor -
880 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£254.33
