3040815

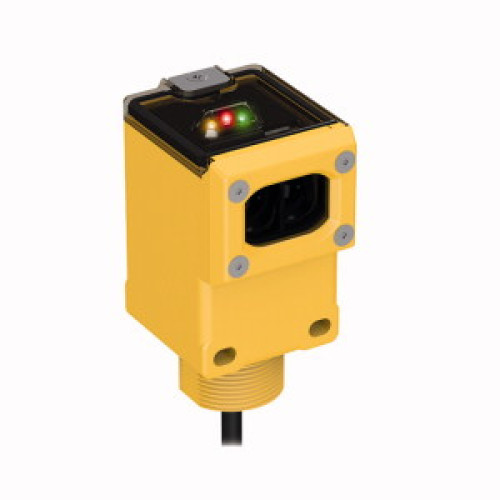

Photoelectric Sensor, Retroreflective Sensor

Manufacturer's No: Q45AD9LV W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor

Availability On Request

£254.33
  • Type: Photoelectric Retroreflective Sensor
  • Operating Voltage: 5-15 VDC
  • Max. Range: 9000 mm
  • Cable Length: 9 m, PVC material
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • NAMUR Output: Dark <= 1.2 mA, Light >= 2.1 mA
  • Conforms to EN 60947-5-6 (NAMUR) standard


Product

Manufacturer Material ID -
Q45AD9LV W/30
Net Weight -
0.75kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

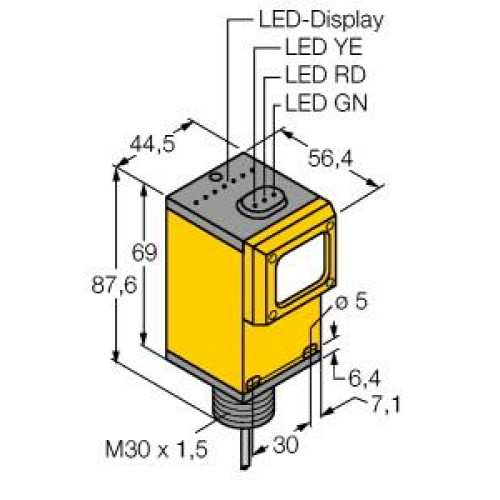

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
9000 Millimetre
Rated switching distance -
9000 Millimetre
Reaction time -
5 Millisecond
Reflector included -
Sensing mode -
Light switching
Switching frequency -
100 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Other
Type of switching output -
NAMUR
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£254.33
