3036561

Q45 Series: Plastic Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Manufacturer's No: Q45BB6FP     Manufacturer: Turck Banner
Q45 Series: Plastic Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 2 m (6.5 ft) cable

Availability On Request

£151.53
  • Photoelectric sensor for plastic fibers
  • Operating voltage: 10-30 VDC
  • Cable length: 2 m
  • Base unit for optical fiber
  • Rectangular plastic housing with lateral light emission
  • High excess gain
  • Sensitivity adjusted via potentiometer
  • Switching output, bipolar
  • Light or dark operation, adjusted via switch
  • Adapter set PFK-B available separately for connecting plastic optical fibers


Product

Manufacturer Material ID -
Q45BB6FP
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

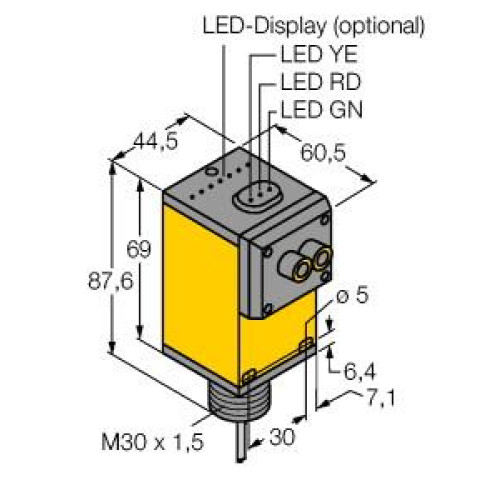

Height amplifier -
87.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
50 Milliampere
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£151.53
