38667 {B}

Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integ

Manufacturer's No: Q45BB6FQ5     Manufacturer: Turck Banner
Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 4-pin M12 Integral QD

Availability Available to order

£144.14
  • Photoelectric sensor for glass fibers
  • Operating voltage: 10-30 VDC
  • Male M12 x 1 connector
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Switching output: bipolar
  • Light or dark operation selectable via switch


Product

Manufacturer Material ID -
Q45BB6FQ5
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

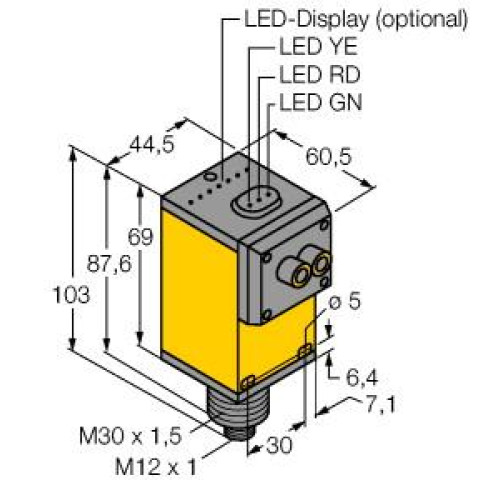

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
102.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
No load current -
50 Milliampere
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width amplifier -
44.5 Millimetre
Turck Banner

Availability Available to order

£144.14
