3041032

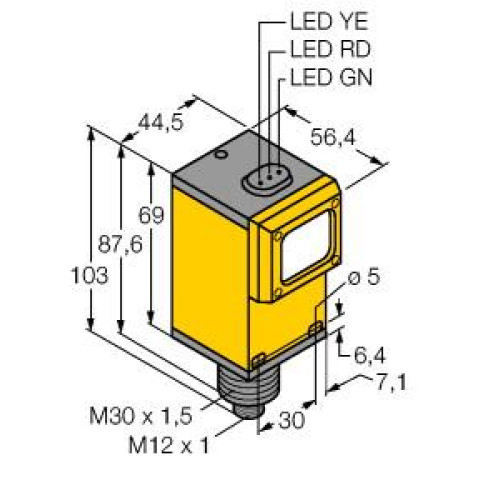

Q45 Series: Laser Retro, Range: 0.3 - 70 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Manufacturer's No: Q45BB6LLQ6     Manufacturer: Turck Banner
Q45 Series: Laser Retro, Range: 0.3 - 70 m, Input: 10-30 V dc, Output: Bipolar: 1 NPN, 1 PNP, 5-pin M12 Integral QD

Availability On Request

£459.12
  • Type: Photoelectric Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 70,000 mm
  • Laser Class: 2
  • Reflector BRT-2X2 included
  • Sensitivity adjustment via potentiometer
  • Switching output: Bipolar
  • Light or dark operation selectable via switch


Product

Manufacturer Material ID -
Q45BB6LLQ6
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Laser protection class -
Class 2
Length of sensor -
56.4 Millimetre
Material of optical surface -
Other
Max. switching distance -
70000 Millimetre
Min. reflector distance -
300 Millimetre
Rated switching distance -
70000 Millimetre
Reaction time -
2 Millisecond
Reflector included -
Switching frequency -
250 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
655 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£459.12
