3040823

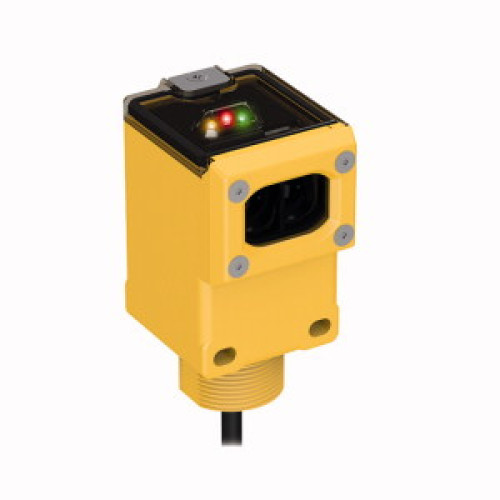

Photoelectric Sensor, Retroreflective Sensor

Manufacturer's No: Q45BB6LL W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor

Availability On Request

POA
  • Photoelectric sensor
  • Retroreflective sensor
  • Operating voltage: 10-30 VDC
  • Max. range: 70,000 mm
  • Cable length: 9 m
  • Cable: PVC, 2 m
  • Protection class: IP67
  • Sensitivity adjusted via potentiometer
  • Switching output: bipolar
  • Light or dark operation, adjusted via switch


Product

Manufacturer Material ID -
Q45BB6LL W/30
Net Weight -
0.79kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-10 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

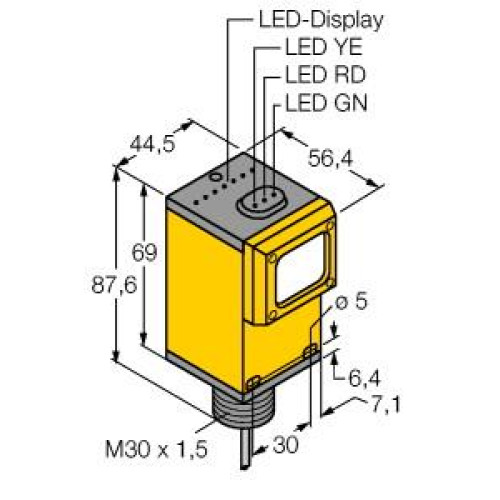

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
70000 Millimetre
Rated switching distance -
70000 Millimetre
Reaction time -
2 Millisecond
Reflector included -
Switching frequency -
250 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

POA
