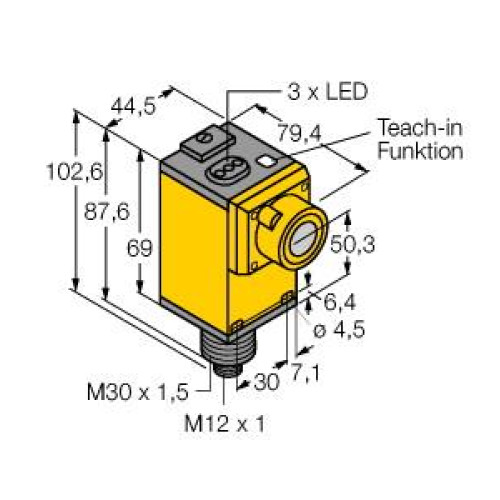

Discrete Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Manufacturer's No: Q45UBB63BCQ6     Manufacturer: Turck Banner
Discrete Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 12-24 V dc, Output: Bipolar: 1 NPN, 1 PNP, M12 Integral QD

Availability On Request

£631.52
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-24 VDC
  • Max. range: 3000 mm
  • Start and end of switching range adjustable via teach button
  • NO/NC output function
  • Response time adjustable
  • PNP transistor output (NO)
  • Aperture angle of sonic cone: 12°
  • Blind zone: 25 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
Q45UBB63BCQ6
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
79.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
250 Millimetre
Supply voltage -
12 Volt
Switching frequency -
50 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Width sensor -
44.5 Millimetre
