3047555

Analog Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 15-24 V dc, Output: Selectable 0-10 V dc or 4-20 mA sourcing, 2 m (6.

Manufacturer's No: Q45ULIU64BCR     Manufacturer: Turck Banner
Analog Q45U Series: Proximity Mode, Range: 250 - 3 m, Input: 15-24 V dc, Output: Selectable 0-10 V dc or 4-20 mA sourcing, 2 m (6.5 ft) Cable

Availability On Request

£705.02
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-24 VDC
  • Max. range: 3000 mm
  • Cable length: 2 m
  • Measuring range adjustable via teach button or control line
  • Response time adjustable
  • Analog output for voltage or current
  • Teach-in function for easy setup
  • Convertible output curves for flexibility
  • Aperture angle of sonic cone: 12°

Read more

  • Blind zone: 25 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
Q45ULIU64BCR
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

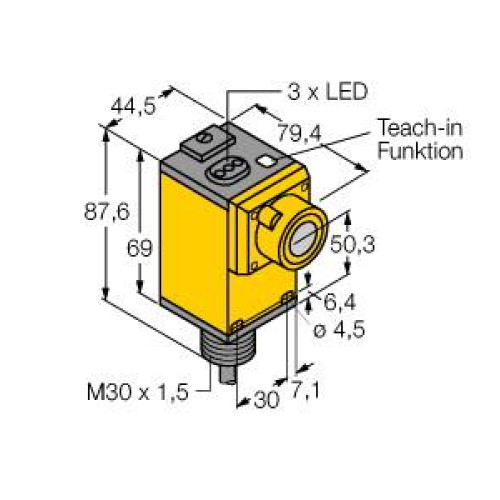

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
79.4 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
250 Millimetre
Supply voltage -
12 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Cable
Type of switching output -
Other
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£705.02
