3053744

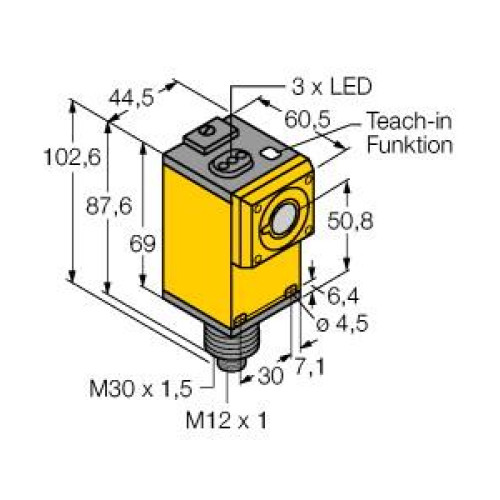

Q45UR Analog Series:Kit, Includes:Controller Q45UR3LIU64CQ6 Sensor: M18C2.0, Range: 50-250, Input: 15-24 V dc, Output: 0-10 V dc o

Manufacturer's No: Q45UR3LIU64CQ6K     Manufacturer: Turck Banner
Q45UR Analog Series:Kit, Includes:Controller Q45UR3LIU64CQ6 Sensor: M18C2.0, Range: 50-250, Input: 15-24 V dc, Output: 0-10 V dc or 4-20 mA Sourcing, M12 Integral QD

Availability On Request

£774.89
  • Ultrasonic Sensor
  • Diffuse mode sensor
  • Operating voltage: 12-24 VDC
  • Max. range: 250 mm
  • Measuring range adjustable via teach button or control line
  • Response time adjustable
  • Analog output for voltage or current
  • Teach-in function
  • Convertible output curves
  • Aperture angle of sonic cone: 15°

Read more

  • Blind zone: 25 cm
  • Range: 300 cm


Product

Manufacturer Material ID -
Q45UR3LIU64CQ6K
Net Weight -
0.44kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
102.6 Millimetre
Housing material -
Plastic
Length of sensor -
60.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
Supply voltage -
12 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Plug-in connection
Type of switching output -
Other
Width sensor -
44.5 Millimetre
Turck Banner

Availability On Request

£774.89
