Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: Q45VR2DX W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 90-250 VAC
  • Max. Range: 3000 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Relay Output: Changeover (SPDT)
  • Light or Dark Operation, Adjusted via Selector Switch


Product

Manufacturer Material ID -
Q45VR2DX W/30
Net Weight -
0.80kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

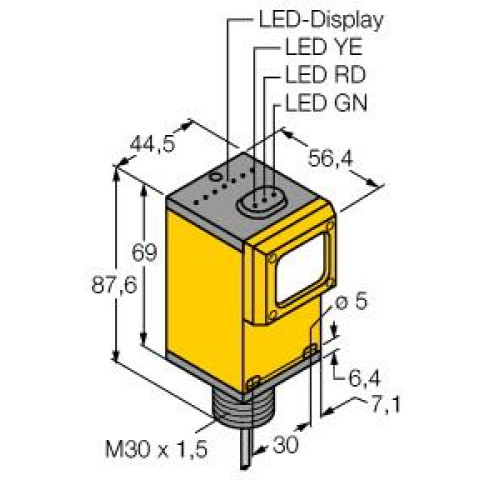

Diameter sensor -
30 Millimetre
Height of sensor -
87.6 Millimetre
Housing material -
Plastic
Length of sensor -
56.4 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Reaction time -
15 Millisecond
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
44.5 Millimetre
