3053975

Q45 Series: Diffuse, Range: 1.8 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Manufacturer's No: Q45VR3DL     Manufacturer: Turck Banner
Q45 Series: Diffuse, Range: 1.8 m, Input: 12-250 V dc or 24-250 V ac, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Availability On Request

£157.88
  • Type: Photoelectric Sensor, Diffuse Mode
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Max. Range: 1800 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • Sensitivity Adjustment: Via potentiometer
  • Relay Output: Changeover (SPDT)
  • Operation Mode: Light or dark, adjusted via selector switch


Product

Manufacturer Material ID -
Q45VR3DL
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

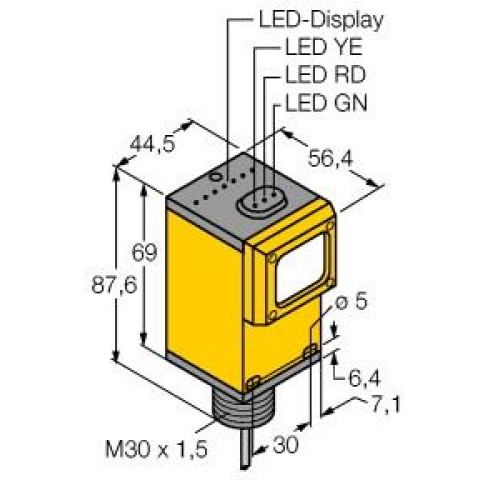

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44.5 Millimetre
Housing material -
Plastic
Length of sensor -
87.6 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Max. switching distance -
1800 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
56.4 Millimetre
Turck Banner

Availability On Request

£157.88
