3053977

Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc/24-250 V ac, Output: SPDT Electromechanical Re

Manufacturer's No: Q45VR3F     Manufacturer: Turck Banner
Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc/24-250 V ac, Output: SPDT Electromechanical Relay, 2 m (6.5 ft) Cable

Availability On Request

£157.88
  • Photoelectric sensor for glass fibers
  • Operating voltage: 24-250 VAC / 12-250 VDC
  • Cable length: 2 meters, PVC material
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Relay output: changeover (SPDT)
  • Light or dark operation selectable via selector switch


Product

Manufacturer Material ID -
Q45VR3F
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

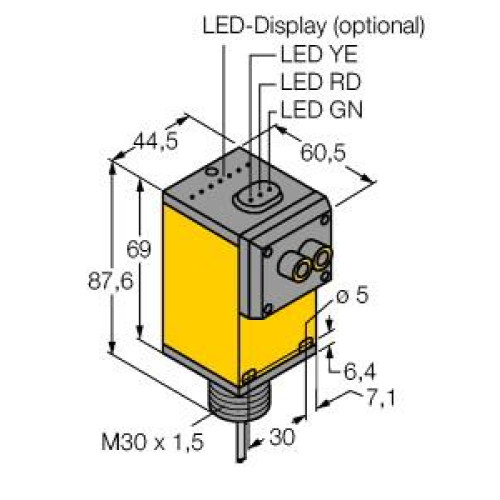

Height amplifier -
87.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width amplifier -
44.5 Millimetre
Turck Banner

Availability On Request

£157.88
