54312 {B}

Q45 Series: Plastic Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical Relay,

Manufacturer's No: Q45VR3FPQ     Manufacturer: Turck Banner
Q45 Series: Plastic Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical Relay, Mini-style Integral QD

Availability Available to order

£174.21
  • Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Male Connector: 7/8"
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • Adapter Set PFK-B for Plastic Optical Fibers (sold separately)
  • Relay Output: Changeover (SPDT)
  • Light or Dark Operation Selectable via Selector Switch


Product

Manufacturer Material ID -
Q45VR3FPQ
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

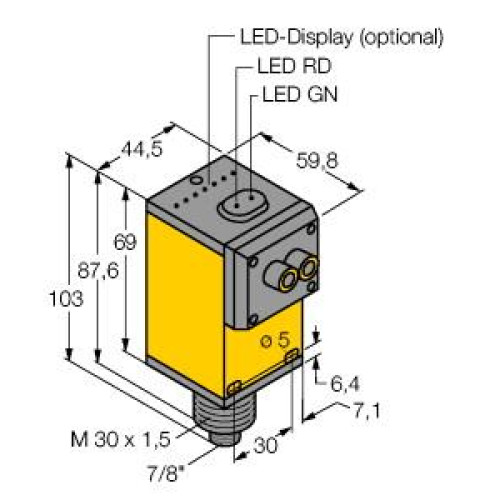

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
101.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
33 Hertz
Type of electric connection -
Connector 7/8 inch
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width amplifier -
44.5 Millimetre
Turck Banner

Availability Available to order

£174.21
