54311 {B}

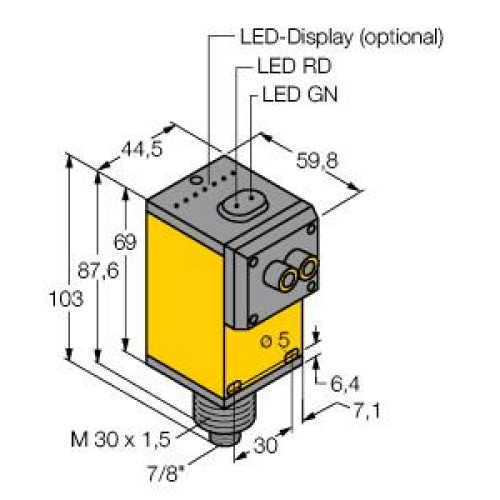

Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical

Manufacturer's No: Q45VR3FQ     Manufacturer: Turck Banner
Q45 Series: Infrared Glass Fiber Optic, Range: Depends on Fiber, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical Relay, 5-pin Mini Integral QD

Availability Available to order

£161.83
  • Photoelectric sensor for glass fibers
  • Operating voltage: 24-250 VAC / 12-250 VDC
  • Male connector size: 7/8"
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • Relay output: changeover (SPDT)
  • Light or dark operation selectable via selector switch


Product

Manufacturer Material ID -
Q45VR3FQ
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height amplifier -
101.6 Millimetre
Housing material -
Plastic
Length amplifier -
60.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
33 Hertz
Type of electric connection -
Connector 7/8 inch
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Width amplifier -
44.5 Millimetre
Turck Banner

Availability Available to order

£161.83
