3054316

Q45 Series: Receiver, Range: 60 m, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical Relay, 5-pin Mini Integral QD

Manufacturer's No: Q45VR3RQ     Manufacturer: Turck Banner
Q45 Series: Receiver, Range: 60 m, Input: 12-250 V dc / 24-250 V ac, Output: SPDT Electromechanical Relay, 5-pin Mini Integral QD

Availability On Request

£150.62
  • Type: Photoelectric Sensor, Opposed Mode (Emitter/Receiver)
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Max. Range: 60000 mm
  • Connector: Male 7/8"
  • Protection Class: IP67
  • Sensitivity Adjustment: Via Potentiometer
  • Output: Relay, Changeover (SPDT)
  • Operation Mode: Light or Dark, Adjustable via Selector Switch


Product

Manufacturer Material ID -
Q45VR3RQ
Net Weight -
0.26kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

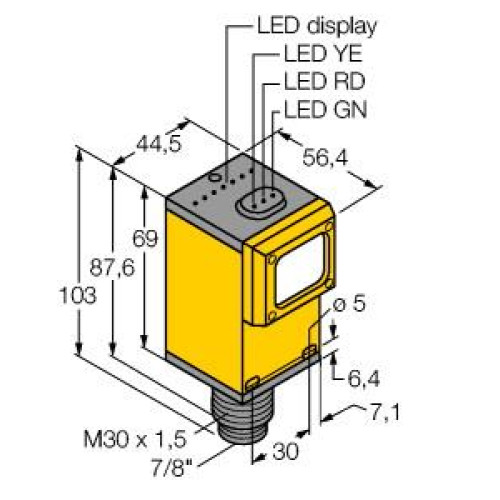

Technical Specification

Ambient temperature -
-40 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
30 Millimetre
Height of sensor -
44.5 Millimetre
Housing material -
Plastic
Length of sensor -
103 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Max. switching distance -
60000 Millimetre
Rated switching distance -
60000 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
33 Hertz
Type of electric connection -
Connector 7/8 inch
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
880 Nanometre
Width sensor -
56.4 Millimetre
Turck Banner

Availability On Request

£150.62
