3097543

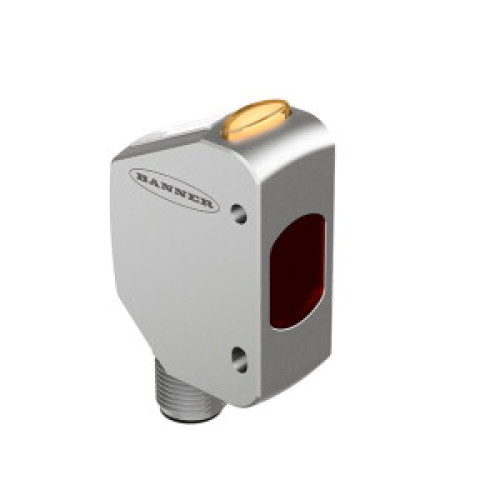

Q4X Series: Laser Adjustable Field, Range: 310, Input 12-30 V dc, Output: Analog: 4-20 mA, 5-pin M12 Integral QD, Flush Mount Hous

Manufacturer's No: Q4XFILAF310-Q8     Manufacturer: Turck Banner
Q4X Series: Laser Adjustable Field, Range: 310, Input 12-30 V dc, Output: Analog: 4-20 mA, 5-pin M12 Integral QD, Flush Mount Housing

Availability On Request

POA
  • Photoelectric Sensor with Laser Distance Sensor (Triangulation)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 310 mm
  • 4-Digit 7-Segment LED Display
  • 3 Buttons for easy operation
  • Output Indicator: Yellow
  • IP67/69K and ECOLAB-Certified for durability
  • Range: 35-310 mm
  • Laser Class 1, Red, 655 nm
  • Operating Voltage: 12-30 VDC

Read more

  • Analog Output: 4-20 mA
  • Rectangular Design with Stainless Steel Housing (1.4404)


Product

Manufacturer Material ID -
Q4XFILAF310-Q8
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
41111926

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
57.5 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
33.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Supply voltage -
10 Volt
Type of analogy output -
4 mA ... 20 mA
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switching output -
Other
Width sensor -
18 Millimetre
