3801424

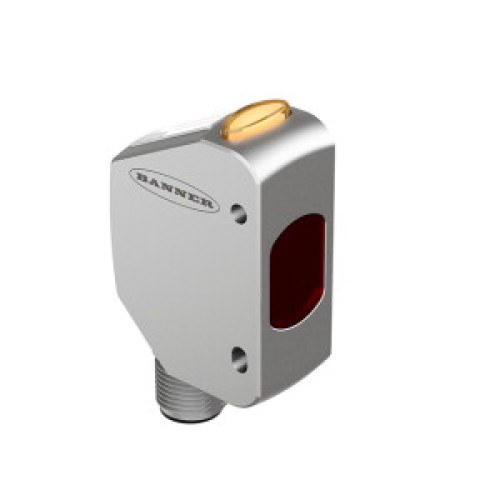

Q4X Series: Laser Adjustable Field, Range: 610, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link Communication, 1 PNP, 4-pin M12

Manufacturer's No: Q4XFKLAF610-Q8     Manufacturer: Turck Banner
Q4X Series: Laser Adjustable Field, Range: 610, Input: 10-30 V dc, Output: 1 PNP/NPN with IO-Link Communication, 1 PNP, 4-pin M12 Integral QD, Flush Mount Housing

Availability On Request

£513.57
  • Photoelectric Sensor with Laser Distance Sensor (Triangulation)
  • Operating voltage: 10-30 VDC
  • Max. range: 610 mm
  • 4-digit 7-segment LED display, 3 buttons
  • Output indicator: yellow
  • IP67/69K and ECOLAB-certified
  • Laser class 1, red, 655 nm
  • Range: 35-610 mm
  • Output 1: push/pull switching output with IO-Link communication
  • Output 2: PNP switching output

Read more

  • Features teach-in input, laser control, synchronization, and Pulse Frequency Modulation (PFM)
  • Rectangular design with stainless steel housing (1.4404)
  • Transmission of process value and parameterization via IO-Link


Product

Manufacturer Material ID -
Q4XFKLAF610-Q8
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216
Turck Banner

Availability On Request

£513.57
