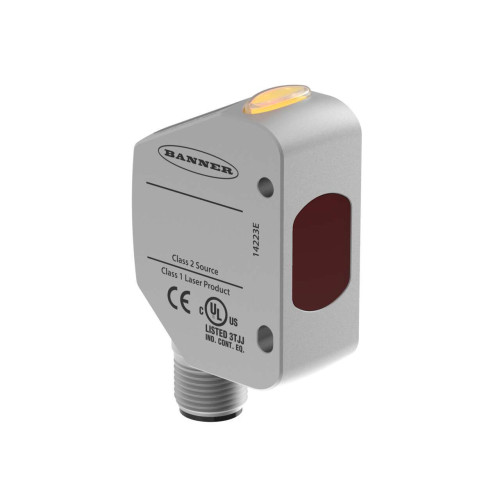

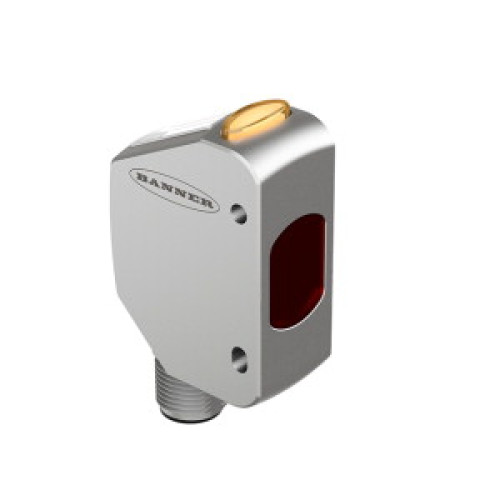

Q4X Series: Clear Object, Range: 310, Input: 10-30 V dc, Outputs: 1 PNP, 4-pin M12 Integral QD, Flush Mount Housing

Manufacturer's No: Q4XFPCOD310-Q8     Manufacturer: Turck Banner
Q4X Series: Clear Object, Range: 310, Input: 10-30 V dc, Outputs: 1 PNP, 4-pin M12 Integral QD, Flush Mount Housing

Availability On Request

POA
  • Photoelectric sensor for clear object detection
  • Operating voltage: 10-30 VDC
  • Max. range: 310 mm

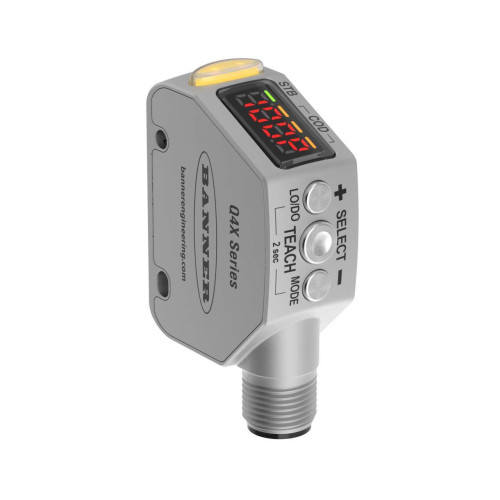

  • 4-digit 7-segment LED display
  • 3 buttons for easy operation
  • Output indicator: yellow
  • IP67/69K and ECOLAB-certified for durability
  • Laser class 1, red, 655 nm, according to IEC 60825-1:2007
  • Range: 35-310 mm
  • 1 × PNP switching output

Read more

  • Rectangular design with stainless steel housing (1.4404)


Product

Manufacturer Material ID -
Q4XFPCOD310-Q8
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
41111926

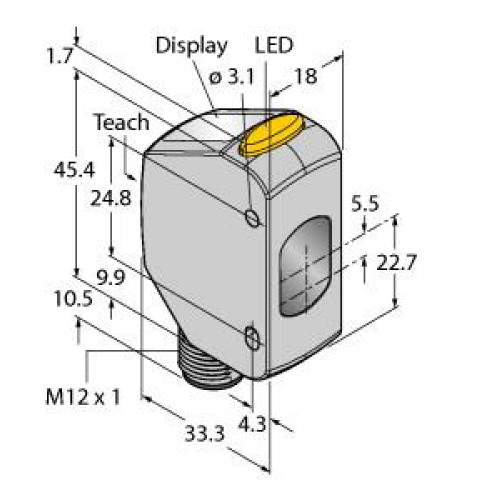

Technical Specification

Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
57.5 Millimetre
Housing material -
Other
Laser protection class -
Class 1
Length of sensor -
33.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Supply voltage -
10 Volt
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Width sensor -
18 Millimetre
