3070094

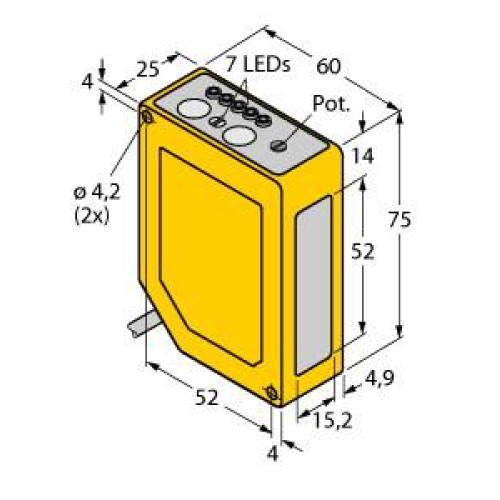

Q60 Series: Adjust-Field Visible Red Univer Volt, Range: 200-1000, Input: 12-250 V dc or 24-250 V ac, Output: Electromechanical Re

Manufacturer's No: Q60VR3AFV1000     Manufacturer: Turck Banner
Q60 Series: Adjust-Field Visible Red Univer Volt, Range: 200-1000, Input: 12-250 V dc or 24-250 V ac, Output: Electromechanical Relay (SPDT), 2 m (6.5 ft) Cable

Availability On Request

£264.04
  • Photoelectric Sensor
  • Diffuse Mode Sensor with Adjustable Background Suppression
  • Max. Range: 1000 mm
  • Operating Voltage: 24-250 VAC / 12-250 VDC
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • 5-Segment LED Display
  • Signal Indication
  • Keylock
  • Switch ON/OFF Delay: Adjustable between 8-16 ms

Read more

  • Relay Output


Product

Manufacturer Material ID -
Q60VR3AFV1000
Net Weight -
0.23kg

Additional Product Information

Commodity Code -
85365080900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
200 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
75 Millimetre
Housing material -
Plastic
Length of sensor -
60 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
1000 Millimetre
Rated switching distance -
1000 Millimetre
Reaction time -
15 Millisecond
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
Relay contact
Wavelength of the sensor -
665 Nanometre
Width sensor -
25 Millimetre
Turck Banner

Availability On Request

£264.04
