3031649

Q853E Emitter, Range: 23 m, Input: 12-240 V dc or 24-240 V ac, Output: Not Applicable, 2 m Cable

Manufacturer's No: Q853E-B     Manufacturer: Turck Banner
Q853E Emitter, Range: 23 m, Input: 12-240 V dc or 24-240 V ac, Output: Not Applicable, 2 m Cable

Availability On Request

POA
  • Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating voltage: 24-240 VAC / 12-240 VDC
  • Max. range: 23000 mm
  • Integrated terminal chamber
  • Cable glands
  • Offset installation by 90° in two places
  • Protection class: IP67


Product

Manufacturer Material ID -
Q853E-B
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

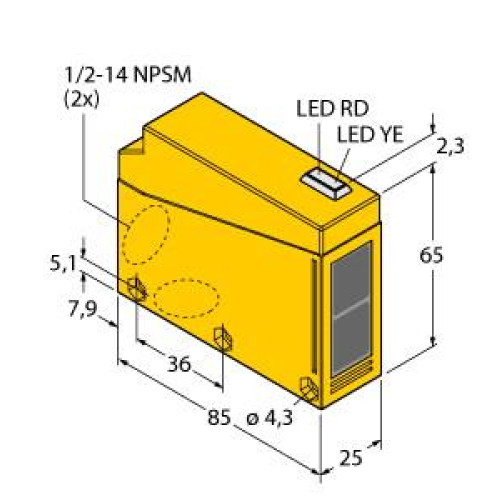

Height of sensor -
25 Millimetre
Housing material -
Plastic
Length of sensor -
85 Millimetre
Material of optical surface -
Other
Max. switching distance -
23000 Millimetre
Rated switching distance -
23000 Millimetre
Reaction time -
20 Millisecond
Type of electric connection -
Clamp
Type of light -
Polarity free red light
Wavelength of the sensor -
680 Nanometre
Width sensor -
65 Millimetre
