3034257

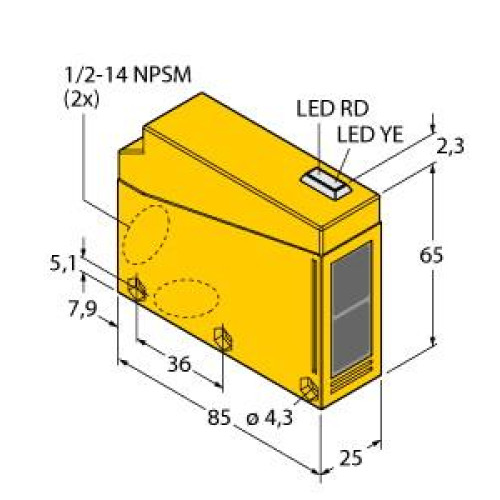

Q85 Series:Polarized Retro W/O Timing, Range: 80-4.6 m, Input: 10-48 V dc, Output: Bipolar,NPN/PNP, Wiring Chamber

Manufacturer's No: Q85BB62LP-B     Manufacturer: Turck Banner
Q85 Series:Polarized Retro W/O Timing, Range: 80-4.6 m, Input: 10-48 V dc, Output: Bipolar,NPN/PNP, Wiring Chamber

Availability On Request

£171.49
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 10-48 VDC
  • Max. range: 46000 mm
  • Integrated terminal chamber with cable glands
  • Offset installation by 90° in two places
  • Protection class: IP67
  • AID alignment aid
  • Outputs: 1 x PNP, 1 x NPN
  • Light and dark operation modes
  • Sensitivity adjustment via potentiometer


Product

Manufacturer Material ID -
Q85BB62LP-B
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
25 Millimetre
Housing material -
Plastic
Length of sensor -
85 Millimetre
Material of optical surface -
Other
Max. switching distance -
46000 Millimetre
Rated switching distance -
46000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Clamp
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP/NPN
Wavelength of the sensor -
680 Nanometre
Width sensor -
65 Millimetre
