3028727

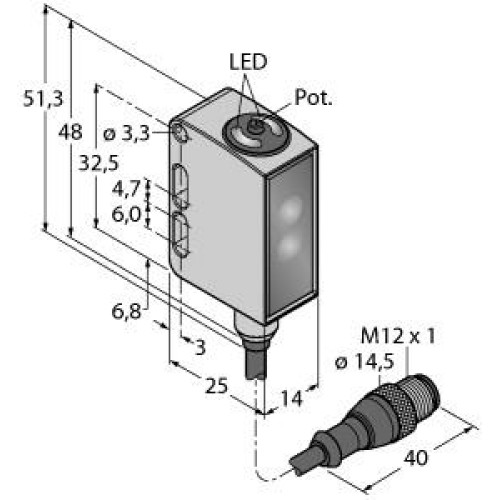

QM26 Washdown Series: Low Contrast Coaxial Polarized Retro, Range: 2.6 m, Input 10-30 V dc, Output: Solid-State PNP with teach Inp

Manufacturer's No: QM26EPXLPCQ5     Manufacturer: Turck Banner
QM26 Washdown Series: Low Contrast Coaxial Polarized Retro, Range: 2.6 m, Input 10-30 V dc, Output: Solid-State PNP with teach Input, 200 (7.5 in) M12 Pigtail QD

Availability On Request

£303.06
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 2600 mm
  • Cable length: 0.15 m
  • Detection range: 5 mm to 800 mm


Product

Manufacturer Material ID -
QM26EPXLPCQ5
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-30 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
32.6 Millimetre
Housing material -
Metal
Length of sensor -
15.3 Millimetre
Material of optical surface -
Other
Max. switching distance -
2600 Millimetre
Rated switching distance -
2600 Millimetre
Reaction time -
0.5 Millisecond
Sensing mode -
Dark switching
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
620 Nanometre
Width sensor -
14 Millimetre
Turck Banner

Availability On Request

£303.06
