3028706

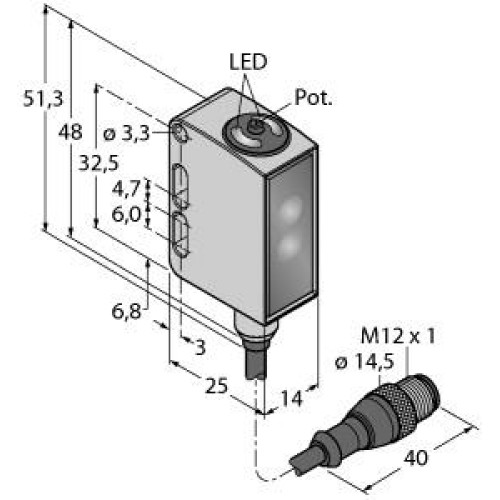

QM26 Washdown Series: Emitter, Range: 8.5 m, Input 10-30 V dc, Input: LED activation input (pull high), 200 (7.5 in) M12 Pigtail Q

Manufacturer's No: QM26EQ5     Manufacturer: Turck Banner
QM26 Washdown Series: Emitter, Range: 8.5 m, Input 10-30 V dc, Input: LED activation input (pull high), 200 (7.5 in) M12 Pigtail QD

Availability On Request

£232.28
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 8500 mm
  • Cable Length: 0.2 m
  • Detection Range: 5 mm - 800 mm


Product

Manufacturer Material ID -
QM26EQ5
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
DE
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-30 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
32.6 Millimetre
Housing material -
Metal
Length of sensor -
15.3 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Other
Max. switching distance -
8500 Millimetre
Rated switching distance -
8500 Millimetre
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Wavelength of the sensor -
620 Nanometre
Width sensor -
14 Millimetre
Turck Banner

Availability On Request

£232.28
