3044902

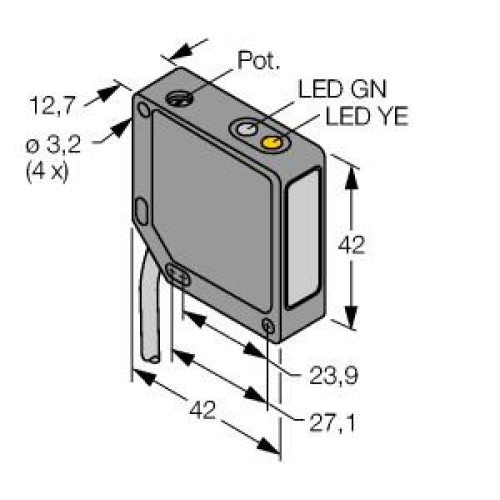

Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Manufacturer's No: QM42VN6LP     Manufacturer: Turck Banner
Photoelectric Sensor, Retroreflective Sensor with Polarizing Filter

Availability On Request

£195.57
  • Photoelectric Sensor with Polarizing Filter
  • Retroreflective Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3000 mm
  • Cable Length: 2 m, PVC, 4-wire
  • Metal Housing, ZN, black
  • Protection Class: IP67
  • Sensitivity Adjusted via Potentiometer
  • NPN Switching Output
  • Light/Dark Operation


Product

Manufacturer Material ID -
QM42VN6LP
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
42 Millimetre
Housing material -
Metal
Length of sensor -
42 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
660 Nanometre
Width sensor -
12.7 Millimetre
Turck Banner

Availability On Request

£195.57
