3044901

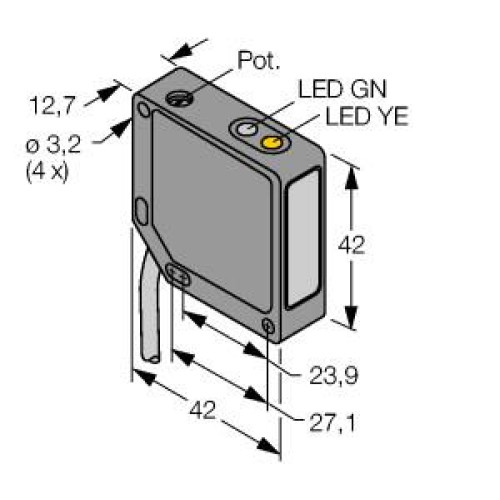

QM42 Series: Polarized Retro, Range: 3 m, Input: 10-30 V dc, Output: SPDT (Complementary) PNP, 2 m (6.5 ft) Cable

Manufacturer's No: QM42VP6LP     Manufacturer: Turck Banner
QM42 Series: Polarized Retro, Range: 3 m, Input: 10-30 V dc, Output: SPDT (Complementary) PNP, 2 m (6.5 ft) Cable

Availability On Request

£205.06
  • Photoelectric sensor with retroreflective sensor and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 3000 mm
  • Cable length: 2 m, PVC material, 4-wire
  • Metal housing with black ZN coating
  • Protection class: IP67
  • Sensitivity adjustment via potentiometer
  • PNP switching output
  • Light/dark operation


Product

Manufacturer Material ID -
QM42VP6LP
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
42 Millimetre
Housing material -
Metal
Length of sensor -
42 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3000 Millimetre
Rated switching distance -
3000 Millimetre
Reaction time -
1 Millisecond
Switching frequency -
500 Hertz
Type of electric connection -
Cable
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
660 Nanometre
Width sensor -
12.7 Millimetre
