3061619

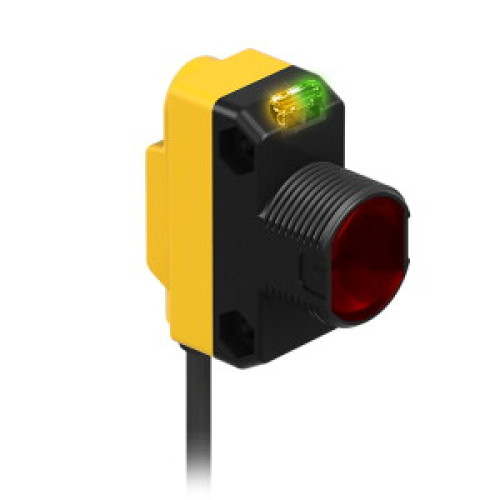

WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M8 Pigtail QD

Manufacturer's No: QS186EQ     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: Not Applicable, 150 (6 in) M8 Pigtail QD

Availability Back Order

£67.14
  • Photoelectric Sensor, Opposed Mode Sensor (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 0.15 m, 4-pin, PVC
  • Protection Class: IP67
  • LED All-round visible


Product

Manufacturer Material ID -
QS186EQ
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
Minimum Order Quantity -
1
UNSPSC -
39121528

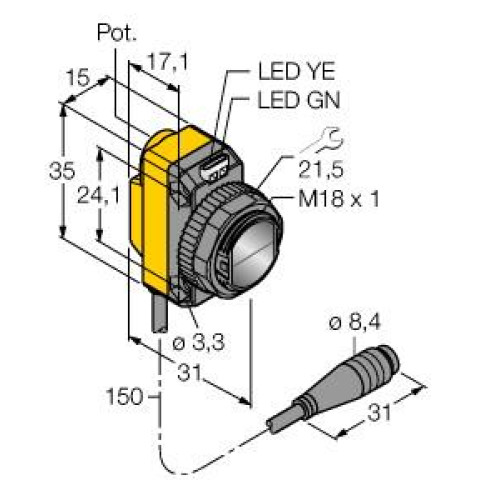

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Type of electric connection -
Connector M8
Type of light -
Infrared light
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Back Order

£67.14
