3061620

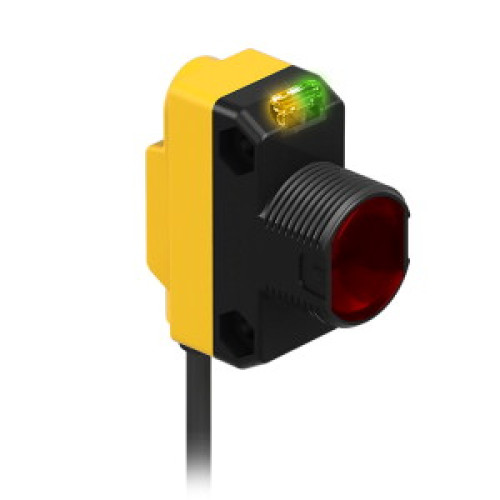

WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: N/A, 9 m (30 ft) Cable

Manufacturer's No: QS186E W/30'     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Emitter, Range: 20 m, Input: 10-30 V dc, Output: N/A, 9 m (30 ft) Cable

Availability On Request

£70.77
  • Type: Photoelectric Sensor, Opposed Mode (Emitter)
  • Operating Voltage: 10-30 VDC
  • Max. Range: 20000 mm
  • Cable Length: 9 m, PVC
  • Protection Class: IP67
  • LED Indicator: All-round visible


Product

Manufacturer Material ID -
QS186E W/30'
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

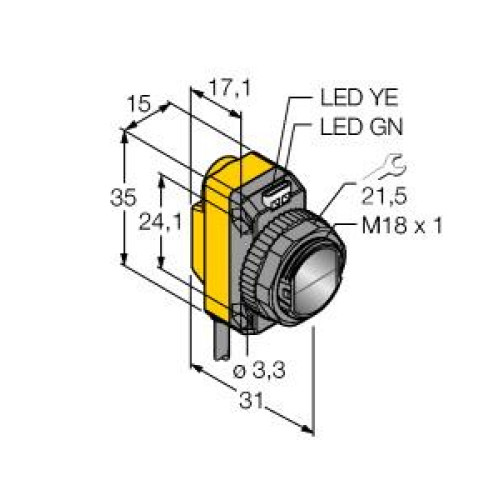

Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Type of electric connection -
Cable
Type of light -
Infrared light
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£70.77
