3068764

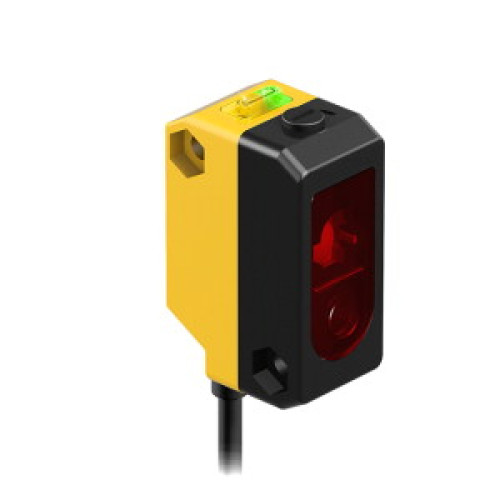

Photoelectric Sensor, Diffuse Mode Sensor

Manufacturer's No: QS18EP6DB W/30     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor

Availability On Request

POA
  • Photoelectric sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 500 mm
  • Cable length: 9 m, PVC material, 4-wire
  • Protection class: IP67
  • LED visible from all angles
  • Sensitivity adjustment via teach button
  • PNP switching output
  • Light or dark operation mode


Product

Manufacturer Material ID -
QS18EP6DB W/30
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

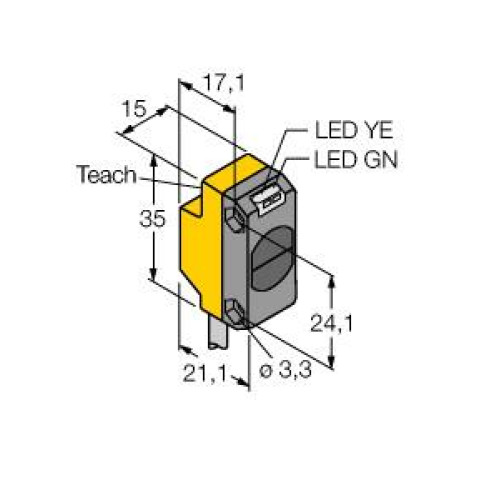

Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
500 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
833 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

POA
