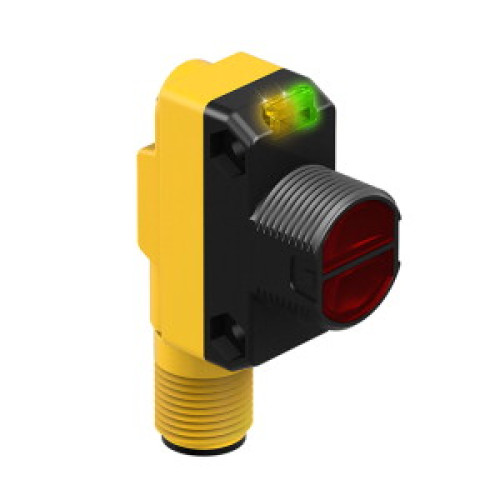

WORLD-BEAM QS18 Expert Series: Polar Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 4-pin M12 Inte

Manufacturer's No: QS18EP6LPQ8     Manufacturer: Turck Banner
WORLD-BEAM QS18 Expert Series: Polar Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 4-pin M12 Integral QD

Availability On Request

£87.11
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 3500 mm
  • Male M12 × 1; 4-pin connection
  • Protection class: IP67
  • LED visible from all angles
  • Sensitivity adjustment via teach button
  • PNP switching output for light or dark operation


Product

Manufacturer Material ID -
QS18EP6LPQ8
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3500 Millimetre
Rated switching distance -
3500 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
833 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarized red light
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
