3073161

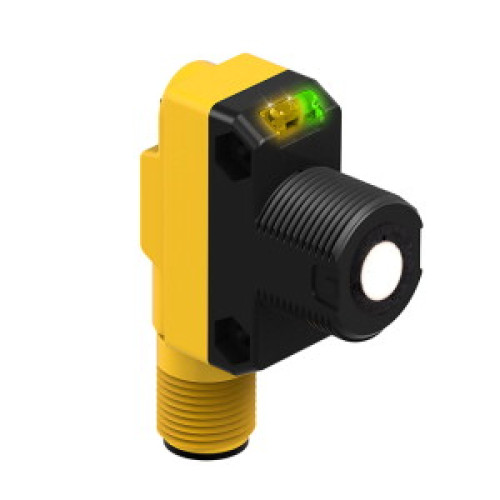

WORLD-BEAM QS18U: Ultrasonic remote TEACH, Range: 50-500, Input: 12-30 V dc, Output: NPN, Epoxy-encapsulated, 4-pin M12 Integral Q

Manufacturer's No: QS18UNAEQ8     Manufacturer: Turck Banner
WORLD-BEAM QS18U: Ultrasonic remote TEACH, Range: 50-500, Input: 12-30 V dc, Output: NPN, Epoxy-encapsulated, 4-pin M12 Integral QD

Availability On Request

£155.16
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-30 VDC
  • Max. range: 500 mm
  • Compact design with male M12 x 1 connector
  • Switching output with adjustable range via teach-connection
  • Adjustable to retroreflective mode
  • Blind zone: 5 cm
  • Range: 50 cm


Product

Manufacturer Material ID -
QS18UNAEQ8
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
33.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
No load current -
25 Milliampere
Supply voltage -
12 Volt
Switching frequency -
33 Hertz
Type of electric connection -
Plug-in connection
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£155.16
