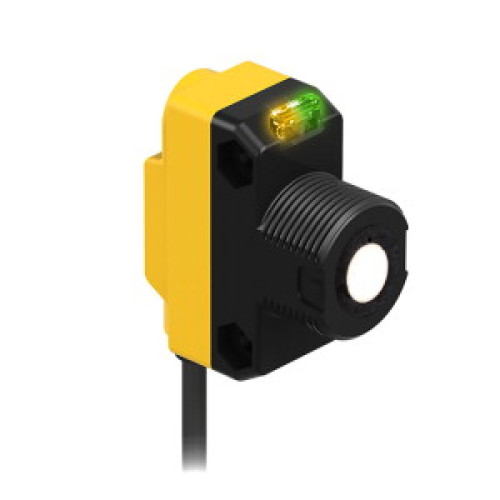

WORLD-BEAM QS18U: Ultrasonic TEACH mode, Range: 50-500, Input: 12-30 V dc, Output: NPN, Epoxy-encapsulated, 9 m (30 ft) Cable

Manufacturer's No: QS18UNAE W/30     Manufacturer: Turck Banner
WORLD-BEAM QS18U: Ultrasonic TEACH mode, Range: 50-500, Input: 12-30 V dc, Output: NPN, Epoxy-encapsulated, 9 m (30 ft) Cable

Availability Available to order

£195.99
  • Ultrasonic sensor in diffuse mode
  • Operating voltage: 12-30 VDC
  • Max. range: 500 mm
  • Cable length: 9 m
  • Compact design
  • Switching output with adjustable range
  • Can be adjusted to retroreflective mode
  • Blind zone: 5 cm
  • Range: 50 cm


Product

Manufacturer Material ID -
QS18UNAE W/30
Net Weight -
0.21kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid

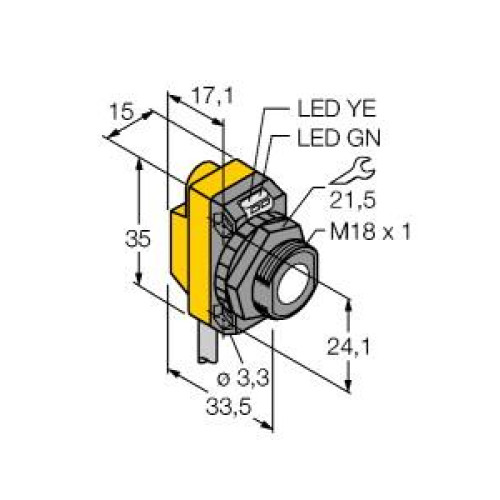

Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
33.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
No load current -
25 Milliampere
Supply voltage -
12 Volt
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
NPN
Width sensor -
15 Millimetre
Turck Banner

Availability Available to order

£195.99
