3073168

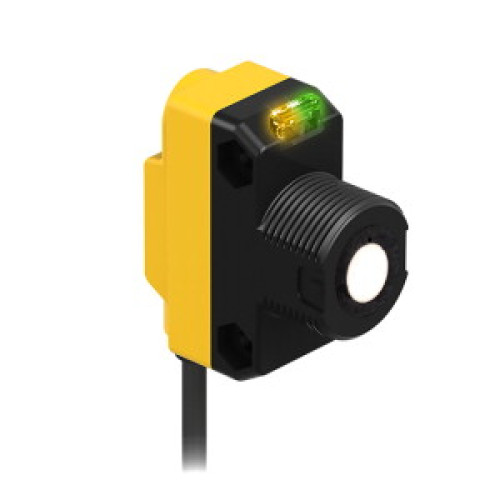

WORLD-BEAM QS18U: Ultrasonic remote TEACH, Range: 50-500, Input: 12-30 V dc, Output: PNP, Epoxy-encapsulated, 150 (6 in) 4-pin M12

Manufacturer's No: QS18UPAEQ5     Manufacturer: Turck Banner
WORLD-BEAM QS18U: Ultrasonic remote TEACH, Range: 50-500, Input: 12-30 V dc, Output: PNP, Epoxy-encapsulated, 150 (6 in) 4-pin M12 Pigtail QD

Availability On Request

£171.49
  • Type: Ultrasonic Sensor
  • Mode: Diffuse mode
  • Output: Switching
  • Operating Voltage: 12-30 VDC
  • Max. Range: 500 mm
  • Cable Length: 0.15 m
  • Design: Compact
  • Connector: Male M12 x 1 pigtail
  • Switching Range: Adjustable via teach-connection
  • Mode: Adjustable to retroreflective

Read more

  • Blind Zone: 5 cm
  • Range: 50 cm


Product

Manufacturer Material ID -
QS18UPAEQ5
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
33.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
No load current -
25 Milliampere
Supply voltage -
12 Volt
Switching frequency -
33 Hertz
Type of electric connection -
Cable with connector
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£171.49
