3074233

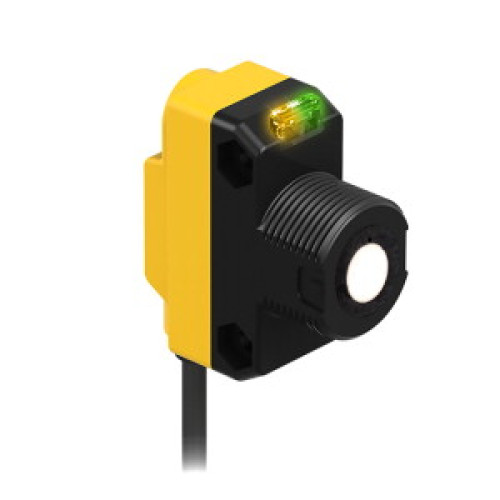

Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Manufacturer's No: QS18UPAE W/30     Manufacturer: Turck Banner
Ultrasonic Sensor, diffuse mode sensor, With Switching Output

Availability On Request

POA
  • Type: Ultrasonic Sensor
  • Mode: Diffuse mode with Switching Output
  • Operating Voltage: 12-30 VDC
  • Max. Range: 500 mm
  • Cable Length: 9 m
  • Compact design
  • Cable Length: 2 m
  • Switching Range adjustable via teach-connection
  • Adjustable to retroreflective mode
  • Blind Zone: 5 cm

Read more

  • Range: 50 cm


Product

Manufacturer Material ID -
QS18UPAE W/30
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
33.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
No load current -
25 Milliampere
Supply voltage -
12 Volt
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

POA
