3074217

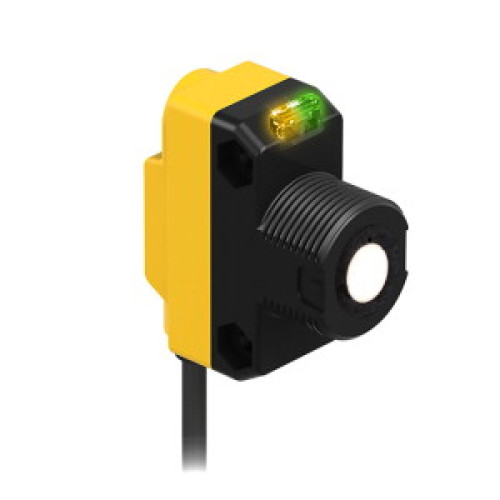

WORLDBEAM QS18U: Ultrasonic TEACH mode; Range: 50500 mm; Input: 1230 V dc; Output: PNP; 9 m 30 ft Cable;

Manufacturer's No: QS18UPAW/30
WORLDBEAM QS18U: Ultrasonic TEACH mode; Range: 50500 mm; Input: 1230 V dc; Output: PNP; 9 m 30 ft Cable;

Availability Back Order

£198.70
  • Model: WORLDBEAM QS18U
  • Ultrasonic sensor with TEACH mode
  • Range: 50,500 mm
  • Input: 12-30 V dc
  • Output: PNP
  • Cable length: 9 meters (30 feet)


Product

Manufacturer Material ID -
QS18UPAW/30
Net Weight -

Additional Product Information

UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
33.5 Millimetre
Material active area of sensor -
Plastic
Material of cable sheath -
Polyvinyl chloride (PVC)
Measuring range length -
50 Millimetre
No load current -
25 Milliampere
Supply voltage -
12 Volt
Switching frequency -
33 Hertz
Type of electric connection -
Cable
Type of switch function -
Normally open contact (NO)
Type of switching output -
PNP
Width sensor -
15 Millimetre


Availability Back Order

£198.70
