3065500

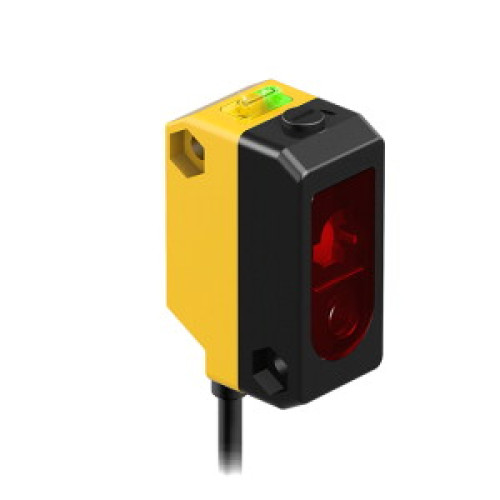

WORLD-BEAM: Adjustable Field, Range: 1-100 Adj Cutoff: 20-100, Input: 10-30 V dc, Outputs: Complementary NPN, 2 m (6.5 ft) Cable

Manufacturer's No: QS18VN6AF100     Manufacturer: Turck Banner
WORLD-BEAM: Adjustable Field, Range: 1-100 Adj Cutoff: 20-100, Input: 10-30 V dc, Outputs: Complementary NPN, 2 m (6.5 ft) Cable

Availability On Request

£112.51
  • Photoelectric sensor in diffuse mode
  • Adjustable background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 100 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED visible from all angles
  • Cut-off point adjusted via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6AF100
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
UNSPSC -
39122216

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
0 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
0.7 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
640 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£112.51
