3071753

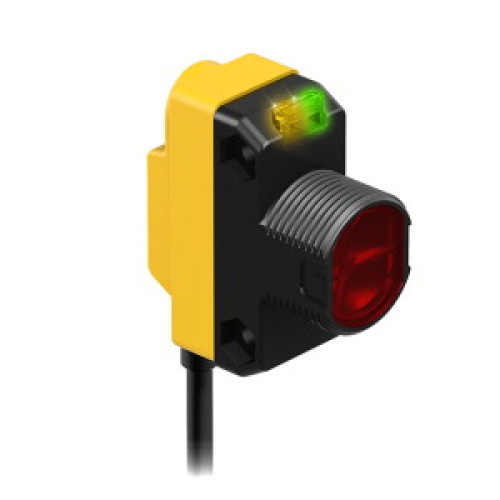

WORLD-BEAM QS18 Series: Fixed-Field, Range: 50, Input: 10-30 V dc, Output: Complementary Solid-State NPN, 150 (6 in) M12 Pigtail Q

Manufacturer's No: QS18VN6FF50Q5     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Fixed-Field, Range: 50, Input: 10-30 V dc, Output: Complementary Solid-State NPN, 150 (6 in) M12 Pigtail QD

Availability On Request

£116.14
  • Photoelectric sensor in diffuse mode
  • Features fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 50 mm
  • Cable length: 0.15 m, male end
  • Connector: M12 × 1, 4-pin, PVC, 150 mm
  • Protection class: IP67
  • LED visible from all angles
  • NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6FF50Q5
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.85 Millisecond
Switching frequency -
625 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£116.14
