3066222

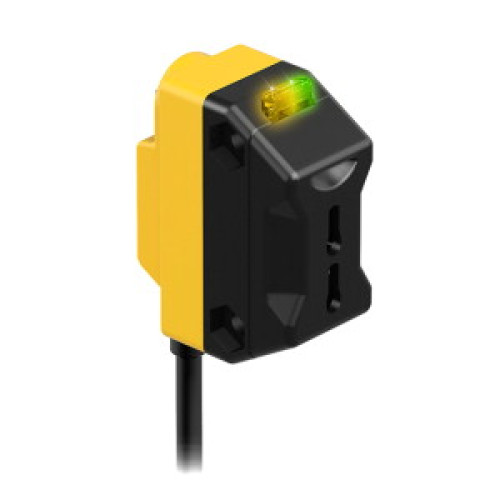

WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: NPN, 2 m (6.5 ft) Cable

Manufacturer's No: QS18VN6FP     Manufacturer: Turck Banner
WORLD-BEAM: Plastic Fiber Optic, Range: depends on the fiber, Input: 10-30 V dc, Output: NPN, 2 m (6.5 ft) Cable

Availability On Request

£87.11
  • Type: Photoelectric Sensor for Plastic Fibers
  • Operating Voltage: 10-30 VDC
  • Max. Range: 3500 mm
  • Cable Length: 2 m, PVC
  • Protection Class: IP67
  • LED All-round visible
  • Sensitivity Adjusted via Potentiometer
  • NPN Switching Output, Changeover


Product

Manufacturer Material ID -
QS18VN6FP
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

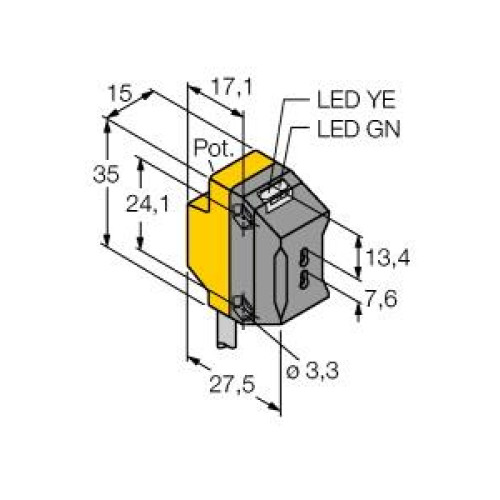

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height amplifier -
34.5 Millimetre
Housing material -
Plastic
Length amplifier -
27.5 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Switching frequency -
800 Hertz
Type of electric connection -
Cable
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Width amplifier -
15 Millimetre
Turck Banner

Availability On Request

£87.11
