3061628

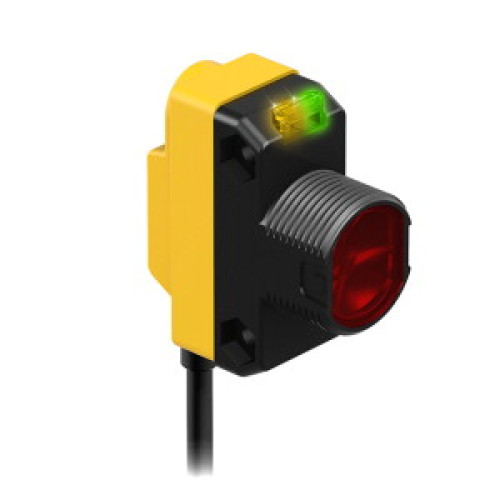

WORLD-BEAM QS18: Polarized Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State NPN, 150 (6 in) M8 Pigtail QD

Manufacturer's No: QS18VN6LPQ     Manufacturer: Turck Banner
WORLD-BEAM QS18: Polarized Retro, Range: 3.5 m, Input: 10-30 V dc, Output: Complementary Solid-State NPN, 150 (6 in) M8 Pigtail QD

Availability On Request

£103.44
  • Photoelectric sensor with retroreflective design and polarizing filter
  • Operating voltage: 10-30 VDC
  • Maximum range: 3500 mm
  • Cable length: 0.15 m, 4-pin male end, PVC material
  • Protection class: IP67
  • LED indicator visible from all angles
  • Sensitivity adjustment via potentiometer
  • NPN switching output, changeover


Product

Manufacturer Material ID -
QS18VN6LPQ
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of optical surface -
Plastic
Max. switching distance -
3500 Millimetre
Rated switching distance -
3500 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
800 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarized red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£103.44
