3061622

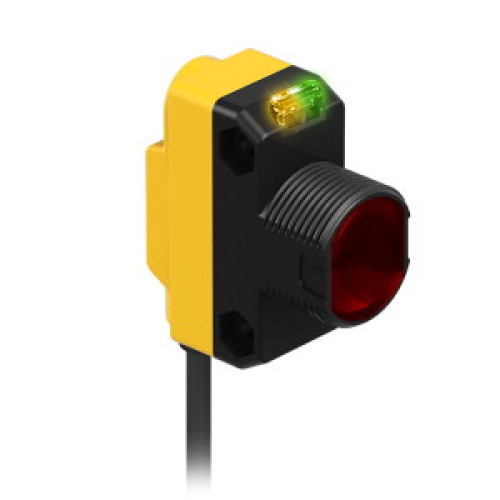

WORLDBEAM QS18 Series: Receiver; Range: 20 m; Input 1030V dc; Output: Complementary Solid State NPN; 6 in Pigtail PicoStyle Pigtai

Manufacturer's No: QS18VN6RQ
WORLDBEAM QS18 Series: Receiver; Range: 20 m; Input 1030V dc; Output: Complementary Solid State NPN; 6 in Pigtail PicoStyle Pigtail QD Connector;

Availability Back Order

£108.88
  • Product: WORLDBEAM QS18 Series Receiver
  • Range: 20 meters
  • Input: 10-30V DC
  • Output: Complementary Solid State NPN
  • Connector: 6-inch Pigtail PicoStyle Pigtail QD Connector


Product

Manufacturer Material ID -
QS18VN6RQ
Net Weight -

Additional Product Information

UNSPSC -
39122216

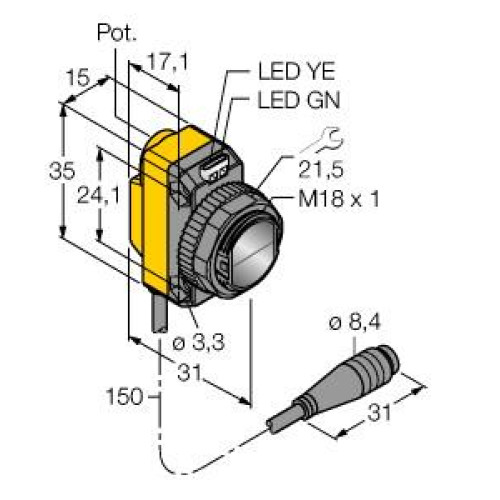

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
20000 Millimetre
Rated switching distance -
20000 Millimetre
Reaction time -
0.75 Millisecond
Switching frequency -
400 Hertz
Type of electric connection -
Connector M8
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
NPN
Width sensor -
15 Millimetre


Availability Back Order

£108.88
