3011451

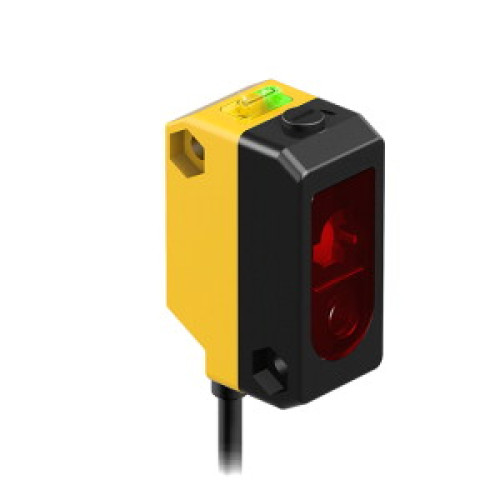

WORLD-BEAM: Adjustable Field Background Suppression, Cutoff Adjustment Range: 30 to 300, Input: 10-30 V dc, Outputs: Complementary

Manufacturer's No: QS18VP6AF300Q     Manufacturer: Turck Banner
WORLD-BEAM: Adjustable Field Background Suppression, Cutoff Adjustment Range: 30 to 300, Input: 10-30 V dc, Outputs: Complementary PNP, 150 (6 in) M8 Pigtail QD

Availability On Request

£131.57
  • Photoelectric sensor in diffuse mode
  • Adjustable background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 300 mm
  • Cable length: 0.15 m, 4-pin male end
  • Protection class: IP67
  • LED visible from all angles
  • Cut-off point adjusted via potentiometer
  • PNP switching output


Product

Manufacturer Material ID -
QS18VP6AF300Q
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Adjustment range -
1 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

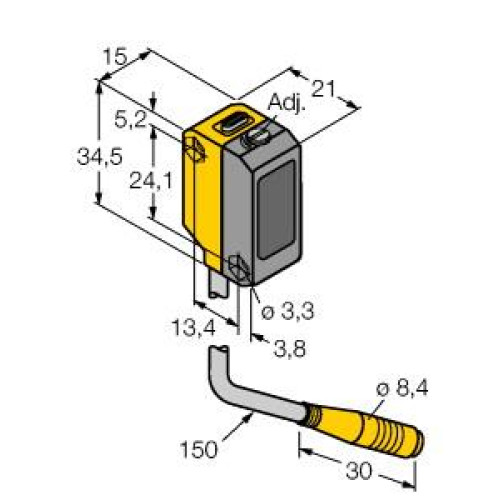

Height of sensor -
34.5 Millimetre
Housing material -
Plastic
Length of sensor -
21.1 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
300 Millimetre
Rated switching distance -
300 Millimetre
Reaction time -
2.5 Millisecond
Switching frequency -
700 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
640 Nanometre
Width sensor -
15 Millimetre
