3061654

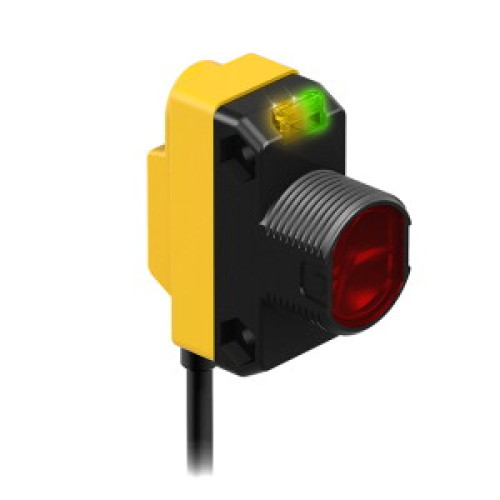

WORLD-BEAM QS18 Series: Diffuse, Range: 450, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Manufacturer's No: QS18VP6D     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Diffuse, Range: 450, Input: 10-30 V dc, Output: Complementary Solid-State PNP, 2 m (6.5 ft) Cable

Availability Back Order

£105.00
  • Photoelectric sensor in diffuse mode
  • Operating voltage: 10-30 VDC
  • Max. range: 450 mm
  • Cable length: 2 m, PVC material
  • Protection class: IP67
  • LED visible from all angles
  • Sensitivity adjustment via potentiometer
  • PNP switching output, changeover


Product

Manufacturer Material ID -
QS18VP6D
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
CN
Minimum Order Quantity -
1
UNSPSC -
39121528

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67

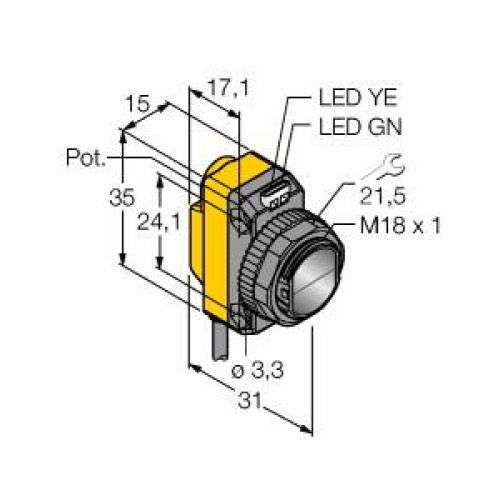

Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
450 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
800 Hertz
Type of electric connection -
Cable
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Back Order

£105.00
