3066438

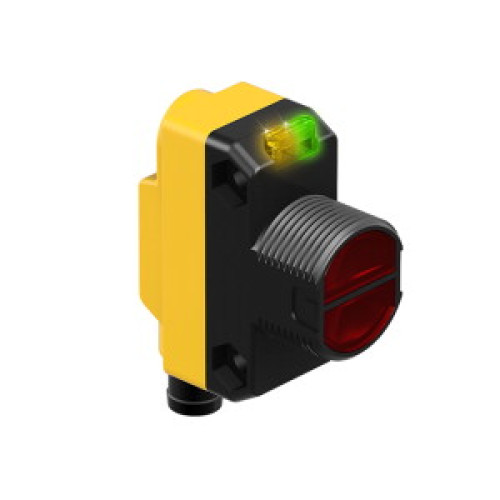

WORLD-BEAM QS18 Series: Diffuse, Range: 450, Input: 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Manufacturer's No: QS18VP6DQ7     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Diffuse, Range: 450, Input: 10-30 V dc, Output: Complementary Solid-State PNP, M8 Integral QD

Availability On Request

£87.11
  • Photoelectric Sensor
  • Diffuse Mode Sensor
  • Operating Voltage: 10-30 VDC
  • Max. Range: 450 mm
  • Male Connector: M8 x 1, 4-pin
  • Protection Class: IP67
  • LED All-round Visible
  • Sensitivity Adjusted via Potentiometer
  • PNP Switching Output, Changeover


Product

Manufacturer Material ID -
QS18VP6DQ7
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

Technical Specification

Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
450 Millimetre
Reaction time -
0.6 Millisecond
Switching frequency -
800 Hertz
Type of electric connection -
Connector M8
Type of light -
Infrared light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
940 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

£87.11
