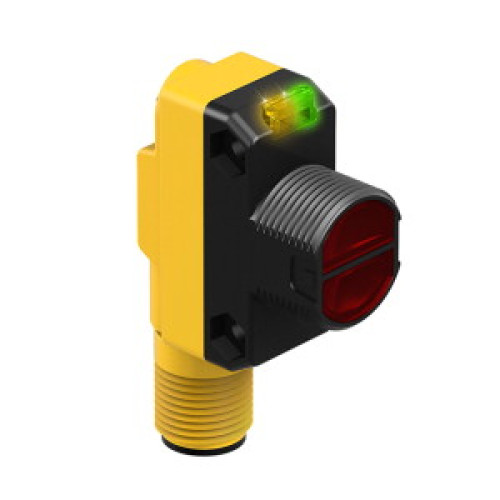

WORLD-BEAM QS18 Series: Fixed-Field, Range: 100 cutoff, Output: Complementary Solid-State PNP, M12 Integral QD

Manufacturer's No: QS18VP6FF100Q8     Manufacturer: Turck Banner
WORLD-BEAM QS18 Series: Fixed-Field, Range: 100 cutoff, Output: Complementary Solid-State PNP, M12 Integral QD

Availability Back Order

£99.81
  • Series: WORLD-BEAM QS18
  • Type: Fixed-Field
  • Range: 100mm cutoff
  • Output: Complementary Solid-State PNP
  • Connection: M12 Integral QD


Product

Manufacturer Material ID -
QS18VP6FF100Q8
Net Weight -
0.08kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
100 Millimetre
Rated switching distance -
100 Millimetre
Reaction time -
0.85 Millisecond
Switching frequency -
625 Hertz
Type of electric connection -
Connector M12
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability Back Order

£99.81
