3071875

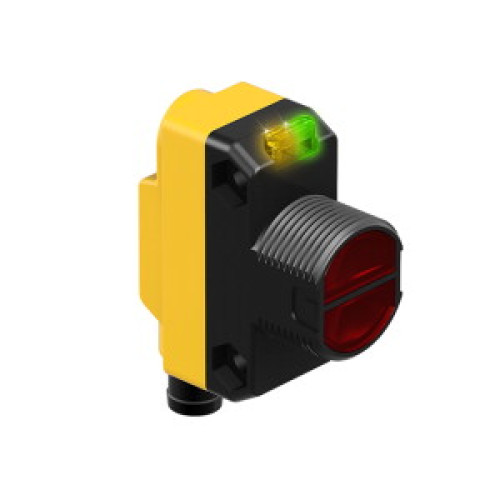

Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Manufacturer's No: QS18VP6FF50Q7     Manufacturer: Turck Banner
Photoelectric Sensor, Diffuse Mode Sensor with Fixed-Field Background Suppressio

Availability On Request

POA
  • Photoelectric sensor in diffuse mode
  • Fixed-field background suppression
  • Operating voltage: 10-30 VDC
  • Maximum range: 50 mm
  • Male connector: M8 x 1, 4-pin
  • Protection class: IP67
  • LED visible from all angles
  • PNP switching output


Product

Manufacturer Material ID -
QS18VP6FF50Q7
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365019900
Country of Origin -
US
UNSPSC -
39122216

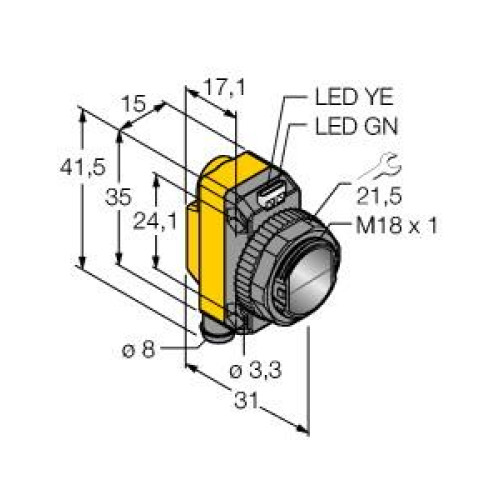

Technical Specification

Adjustment range -
0 Millimetre
Ambient temperature -
-20 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Diameter sensor -
18 Millimetre
Height of sensor -
35 Millimetre
Housing material -
Plastic
Length of sensor -
31 Millimetre
Material of cable sheath -
Polyvinyl chloride (PVC)
Material of optical surface -
Plastic
Max. switching distance -
50 Millimetre
Rated switching distance -
50 Millimetre
Reaction time -
0.85 Millisecond
Switching frequency -
625 Hertz
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switch function -
Change-over contact (NO/NC)
Type of switching output -
PNP
Wavelength of the sensor -
630 Nanometre
Width sensor -
15 Millimetre
Turck Banner

Availability On Request

POA
